01

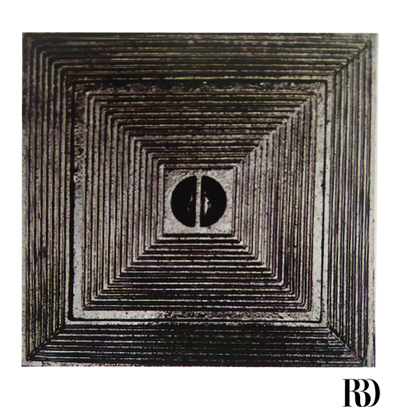

Cast Iron Single Seal Solid Top Manhole Cover & Frame

Cast iron single seal solid top manhole cover and frame manufactured as per BS-EN124 or BS-497-76 specification. This product range is suitable for municipal, drainage, water, electrical, telephone and utility infrastructure applications where a durable solid top cover is required.

Product Code Range RBO-1001 to RBO-1022

Product Type Single Seal Solid Top Cover With Frame

Standard BS-EN124 or BS-497-76 Specification

Available Grades A15, B125, C250, D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Single Seal Product Size Table

Single Seal

Product Code	Grade as per BS-EN124	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Seal Type	Grade as per BS-497-76	Appx. Weight Kg ±5%
RBO-1001	A 15	300 X 300	360 X 360	25	Single Seal	C	7
RBO-1002	A 15	300 X 300	370 X 370	40	Single Seal	C	11
RBO-1003	A 15	300 X 300	370 X 370	40	Single Seal	C	13
RBO-1004	A 15	300 X 300	370 X 370	40	Single Seal	C	15
RBO-1005	B 125	300 X 300	370 X 370	45	Single Seal	B	20
RBO-1006	C 250	300 X 300	395 X 395	75	Single Seal	A	38
RBO-1007	A 15	400 X 400	455 X 455	25	Single Seal	C	15
RBO-1008	B 125	400 X 400	455 X 455	40	Single Seal	B	25
RBO-1009	A 15	450 X 450	525 X 525	45	Single Seal	C	28
RBO-1010	B 125	450 X 450	525 X 525	50	Single Seal	B	38
RBO-1011	C 250	450 X 450	555 X 555	75	Single Seal	A	60
RBO-1012	A 15	450 X 600	530 X 680	30	Single Seal	C	21
RBO-1013	A 15	500 X 500	565 X 565	25	Single Seal	C	28
RBO-1014	A 15	600 X 600	660 X 660	30	Single Seal	C	32
RBO-1015	A 15	600 X 600	660 X 660	35	Single Seal	C	42
RBO-1016	B 125	600 X 600	720 X 720	75	Single Seal	B	75
RBO-1017	B 125	600 X 600	680 X 680	75	Single Seal	B	80
RBO-1018	D 400	600 X 600	700 X 700	100	Single Seal	A	150
RBO-1019	A 15	600 X 750	710 X 865	50	Single Seal	C	52
RBO-1020	A 15	600 X 900	710 X 1000	50	Single Seal	C	70
RBO-1021	B 125	600 X 900	710 X 1000	75	Single Seal	B	95
RBO-1022	D 400	900 X 900	1065 X 1065	100	Single Seal	A	250

02

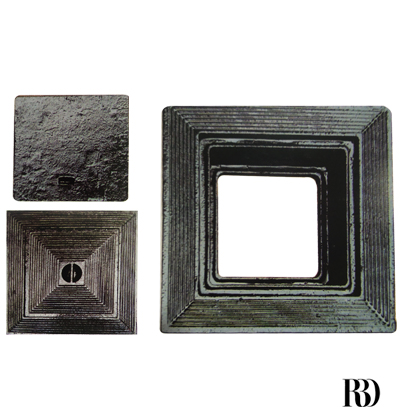

Cast Iron Double Seal Solid Top Manhole Cover & Frame

Cast iron double seal solid top manhole cover and frame manufactured as per BS-EN124 or BS-497-76 specification. This range is designed for stronger sealing performance, better stability and heavier municipal or utility use depending on the selected grade and size.

Product Code Range RBO-1023 to RBO-1044

Product Type Double Seal Solid Top Cover With Frame

Standard BS-EN124 or BS-497-76 Specification

Available Grades A15, B125, C250, D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Special Markings Available in English

Drainage Water Electrical Telephone

Double Seal Product Size Table

Double Seal

Product Code	Grade as per BS-EN124	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Seal Type	Grade as per BS-497-76	Appx. Weight Kg ±5%
RBO-1023	A 15	300 X 300	410 X 410	35	Double Seal	C	20
RBO-1024	B 150	300 X 300	410 X 410	40	Double Seal	B	28
RBO-1025	C 250	300 X 300	450 X 450	75	Double Seal	A	45
RBO-1026	A 15	450 X 450	600 X 600	40	Double Seal	C	38
RBO-1027	A 15	450 X 450	600 X 600	50	Double Seal	C	45
RBO-1028	B 125	450 X 450	630 X 630	75	Double Seal	B	70
RBO-1029	C 250	450 X 450	630 X 630	85	Double Seal	A	90
RBO-1030	A 15	450 X 450	630 X 785	40	Double Seal	C	45
RBO-1031	A 15	600 X 600	760 X 760	45	Double Seal	C	50
RBO-1032	A 15	600 X 600	760 X 760	45	Double Seal	C	60
RBO-1033	B 125	600 X 600	760 X 760	50	Double Seal	B	75
RBO-1034	B 125	600 X 600	755 X 755	75	Double Seal	B	90
RBO-1035	B 125	600 X 600	800 X 800	75	Double Seal	B	110
RBO-1036	B 125	600 X 600	800 X 800	75	Double Seal	B	120
RBO-1037	C 250	600 X 600	800 X 800	80	Double Seal	A	140
RBO-1038	C 250	600 X 600	800 X 800	80	Double Seal	A	165
RBO-1039	D 400	600 X 600	840 X 840	100	Double Seal	A	210
RBO-1040	A 15	600 X 750	760 X 910	45	Double Seal	C	90
RBO-1041	A 15	600 X 900	760 X 1060	45	Double Seal	C	130
RBO-1042	A 15	800 X 800	980 X 980	40	Double Seal	C	100
RBO-1043	D 400	800 X 800	1000 X 1000	80	Double Seal	A	230
RBO-1044	B 125	900 X 900	1100 X 1100	40	Double Seal	B	145

03

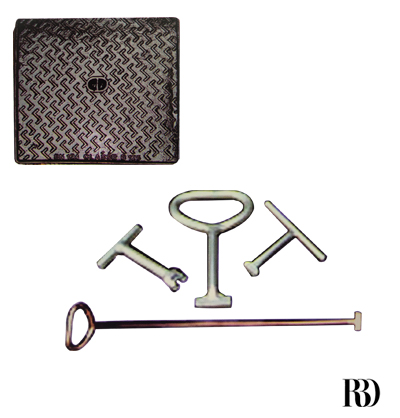

Ductile Iron Solid Top Manhole Cover & Frame

Ductile iron solid top manhole cover and frame manufactured as per BS-EN124 or BS-497-76 specification. This product range is available in single seal and double seal options with different clear openings, overall base sizes, heights and load grades for infrastructure and utility applications.

Product Code Range RBO-1045 to RBO-1066

Product Type Ductile Iron Solid Top Cover With Frame

Standard BS-EN124 or BS-497-76 Specification

Available Grades B125, C250, D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Special Markings Available in English

Drainage Water Electrical Telephone

Ductile Iron Solid Top Product Size Table

Single / Double Seal

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Seal Type	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1045	B	300 X 300	370 X 370	40	Single Seal	B 125	15
RBO-1046	B	300 X 300	410 X 410	35	Double Seal	B 125	20
RBO-1047	B	300 X 300	410 X 410	40	Double Seal	B 125	28
RBO-1048	A	300 X 300	395 X 395	75	Single Seal	D 400	38
RBO-1049	A	300 X 300	450 X 450	75	Double Seal	D 400	45
RBO-1050	B	450 X 450	525 X 525	45	Single Seal	B 125	28
RBO-1051	B	450 X 450	600 X 600	50	Double Seal	B 125	45
RBO-1052	A	450 X 450	555 X 555	75	Single Seal	D 400	60
RBO-1053	A	450 X 450	630 X 630	75	Double Seal	D 400	70
RBO-1054	B	600 X 600	660 X 660	30	Single Seal	B 125	32
RBO-1055	B	600 X 600	660 X 660	35	Single Seal	B 125	42
RBO-1056	B	600 X 600	760 X 760	45	Double Seal	B 125	50
RBO-1057	B	600 X 600	760 X 760	50	Double Seal	C 250	75
RBO-1058	A	600 X 600	720 X 720	75	Single Seal	D 400	75
RBO-1059	A	600 X 600	760 X 760	75	Double Seal	D 400	85
RBO-1060	A	600 X 600	700 X 700	100	Double Seal	D 400	130
RBO-1061	A	600 X 600	840 X 840	100	Double Seal	D 400	190
RBO-1062	B	600 X 750	710 X 865	50	Single Seal	B 125	60
RBO-1063	B	600 X 750	760 X 910	50	Double Seal	B 125	90
RBO-1064	B	600 X 900	710 X 1000	50	Single Seal	B 125	70
RBO-1065	B	600 X 900	760 X 1060	50	Double Seal	B 125	130
RBO-1066	B	800 X 800	980 X 980	40	Double Seal	B 125	100

04

Recessed Cover & Frame

Recessed cover and frame manufactured as per BS-EN124 or BS-497-76 specification. This range is suitable for tile and interlock finishing applications where the cover surface needs to blend with the surrounding floor or pavement finish.

Product Code Range RBO-1067 to RBO-1078

Product Type Recessed Cover With Frame

Standard BS-EN124 or BS-497-76 Specification

For / Type Tile / Inter Lock

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Recessed Cover Product Size Table

Recessed Cover

Product Code	Grade as per BS-EN124	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Seal Type	Recess Depth mm	For / Type	Appx. Weight Kg ±5%
RBO-1067	B 125	300 X 300	455 X 455	65	Double Seal	40	Tile	30
RBO-1068	B 125	300 X 300	455 X 455	95	Double Seal	70	Inter Lock	36
RBO-1069	D 400	300 X 300	455 X 455	95	Double Seal	70	Inter Lock	50
RBO-1070	B 125	450 X 450	600 X 600	75	Double Seal	40	Tile	45
RBO-1071	B 125	450 X 450	610 X 610	90	Double Seal	70	Inter Lock	55
RBO-1072	D 400	450 X 450	610 X 610	90	Double Seal	70	Inter Lock	80
RBO-1073	A 15	600 X 600	690 X 960	65	Single Seal	40	Tile	50
RBO-1074	B 125	600 X 600	750 X 750	75	Double Seal	40	Tile	70
RBO-1075	B 125	600 X 600	760 X 760	90	Double Seal	70	Inter Lock	75
RBO-1076	B 125	600 X 600	765 X 765	90	Double Seal	70	Inter Lock	90
RBO-1077	D 400	600 X 600	825 X 825	100	Double Seal	80	Inter Lock	110
RBO-1078	D 400	600 X 600	825 X 825	100	Double Seal	80	Inter Lock	140

05

Cast Iron Circular Manhole Cover With Circular or Square Frame

Cast iron circular manhole cover with circular or square frame manufactured as per BS-EN124 or BS-497-76 specification. This product range is suitable for drainage, municipal and utility infrastructure applications where circular cover design with circular or square frame arrangement is required.

Product Code Range RBO-1079 to RBO-1091

Product Type Circular Manhole Cover With Circular / Square Frame

Standard BS-EN124 or BS-497-76 Specification

Available Grades A15, B125, C250, D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Cast Iron Circular Manhole Cover Size Table

Circular Cover

Product Code	Grade as per BS-EN124	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Seal Type	Grade as per BS-497-76	Appx. Weight Kg ±5%
RBO-1079	A 15	450 DIA	555 DIA	55	Single Seal	C	16
RBO-1080	A 15	450 DIA	665 DIA	80	Double Seal	C	35
RBO-1081	B 125	550 DIA	670 DIA	85	Single Seal	B	45
RBO-1082	A 15	600 DIA	960 DIA	35	Single Seal	C	32
RBO-1083	A 15	600 DIA	715 DIA	75	Single Seal	C	50
RBO-1084	B 125	600 DIA	755 DIA	75	Single Seal	B	90
RBO-1085	C 250	600 DIA	815 DIA	100	Single Seal	B	90
RBO-1086	D 400	600 DIA	755 DIA	100	Single Seal	A	150
RBO-1087	D 400	600 DIA	875 DIA	150	Single Seal	A	165
RBO-1088	D 400	600 DIA	875 DIA	200	Single Seal	A	210
RBO-1089	B 125	665 DIA	755 DIA	50	Single Seal	B	80
RBO-1090	D 400	600 DIA	750 X 750 SQUARE FRAME	100	Single Seal	A	110
RBO-1091	D 400	600 DIA	690 X 690 SQUARE FRAME	125	Single Seal	A	130

06

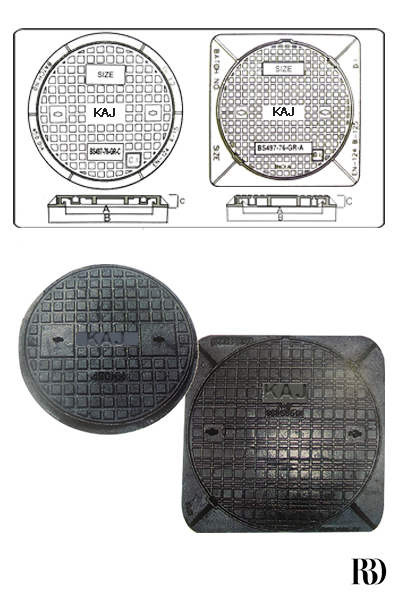

Ductile Iron Circular Manhole Cover With Circular or Square Frame

Ductile iron circular manhole cover with circular or square frame manufactured as per BS-EN124 or BS-497-76 specification. This range is suitable for utility and heavy-duty municipal applications and is available in multiple sizes with circular as well as square frame options.

Product Code Range RBO-1092 to RBO-1101

Product Type Ductile Iron Circular Cover With Circular / Square Frame

Standard BS-EN124 or BS-497-76 Specification

Available Grades B125, C250, D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Ductile Iron Circular Manhole Cover Size Table

Circular Cover

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1092	B	550 DIA	670 DIA	85	B 125	45
RBO-1093	B	600 DIA	715 DIA	75	B 125	50
RBO-1094	A	600 DIA	755 DIA	75	C 250	90
RBO-1095	A	600 DIA	815 DIA	100	D 400	90
RBO-1096	B	600 DIA	755 DIA	100	D 400	150
RBO-1097	B	600 DIA	875 DIA	150	D 400	165
RBO-1098	A	600 DIA	875 DIA	200	D 400	210
RBO-1099	B	665 DIA	755 DIA	50	C 250	80
RBO-1100	A	600 DIA	750 X 750 SQUARE FRAME	100	D 400	110
RBO-1101	A	600 DIA	690 X 690 SQUARE FRAME	125	D 400	130

07

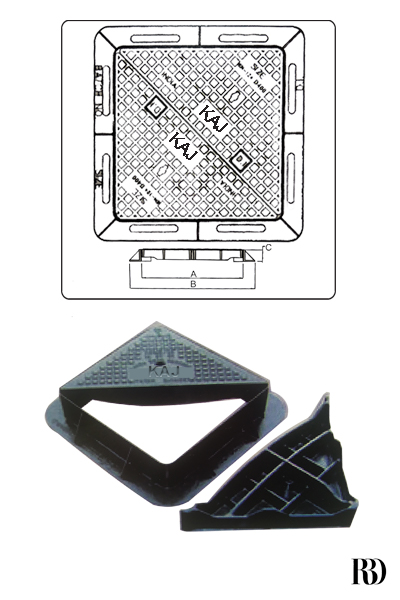

Double Triangular Manhole Cover & Frame

Double triangular manhole cover and frame available in cast iron and ductile iron variants, manufactured as per BS-EN124 or BS-497-76 specification. This range is designed for heavy-duty infrastructure and utility applications where strong load-bearing performance and durable construction are required.

Product Code Range RBO-1102 to RBO-1112

Product Type Double Triangular Manhole Cover With Frame

Material Cast Iron / Ductile Iron

Standard BS-EN124 or BS-497-76 Specification

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Cast Iron Double Triangular Manhole Cover & Frame

Cast Iron

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1102	A	600 X 600	760 X 760	100	D 400	130
RBO-1103	A	600 X 600	760 X 760	150	D 400	200
RBO-1104	A	675 X 675	835 X 835	100	D 400	180
RBO-1105	A	675 X 675	834 X 835	150	D 400	230
RBO-1106	A	900 X 900	1060 X 1060	150	D 400	390

Ductile Iron Double Triangular Manhole Cover & Frame

Ductile Iron

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1107	A	600 X 600	750 X 750	100	D 400	98
RBO-1108	A	600 X 600	760 X 760	100	D 400	130
RBO-1109	A	600 X 600	760 X 760	150	D 400	200
RBO-1110	A	675 X 675	835 X 835	100	D 400	125
RBO-1111	A	675 X 675	835 X 835	150	D 400	215
RBO-1112	A	900 X 900	1060 X 1060	150	D 400	250

08

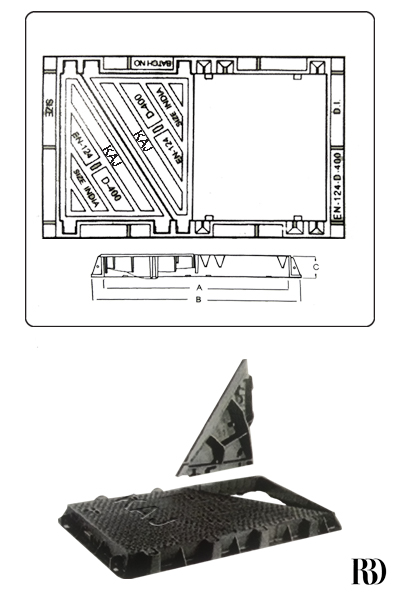

Multiple Triangular Manhole Cover & Frame

Multiple triangular manhole cover and frame available in cast iron and ductile iron variants, manufactured as per BS-EN124 or BS-497-76 specification. This range is suitable for heavy-duty utility, drainage and infrastructure applications where larger opening sizes and strong load-bearing performance are required.

Product Code Range RBO-1113 to RBO-1117

Product Type Multiple Triangular Manhole Cover With Frame

Material Cast Iron / Ductile Iron

Standard BS-EN124 or BS-497-76 Specification

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Cast Iron Multiple Triangular Manhole Cover & Frame

Cast Iron

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1113	A	1220 X 675	1380 X 835	150	D 400	430
RBO-1114	A	1224 X 700	1373 X 850	150	D 400	430

Ductile Iron Multiple Triangular Manhole Cover & Frame

Ductile Iron

Product Code	Grade as per BS-497-76	Clear Opening A (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1115	A	1220 X 675	1380 X 835	150	D 400	260
RBO-1116	A	1224 X 700	1373 X 850	150	D 400	270
RBO-1117	A	1835 X 700	1984 X 850	150	D 400	385

09

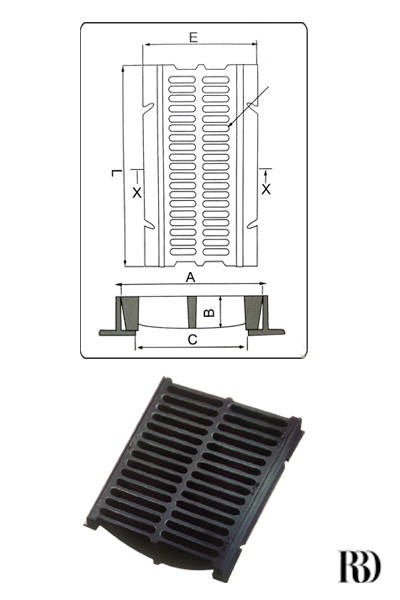

Channel Gratings

Channel gratings manufactured as per BS-EN124 or BS-497-76 specification. This product range is suitable for drainage channels, surface water discharge areas, industrial drainage lines and infrastructure locations where strong water-flow grating support is required.

Product Code Range RBO-1118 to RBO-1124

Product Type Channel Grating

Standard BS-EN124 or BS-497-76 Specification

Grade D400

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Channel Gratings Product Size Table

Channel Grating

Product Code	Grade as per BS-497-76	Width of Grating A (mm)	Length of Grating L (mm)	Clear Opening C (mm)	Overall Thickness B (mm)	Overall Frame Width E (mm)	Depth of Frame D (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1118	A	150	750	110	55	260	75	D 400	38
RBO-1119	A	170	750	130	55	280	75	D 400	42
RBO-1120	A	225	750	185	55	335	75	D 400	50
RBO-1121	A	300	750	260	55	410	75	D 400	56
RBO-1122	A	350	750	310	55	460	75	D 400	62
RBO-1123	A	400	750	360	55	510	75	D 400	68
RBO-1124	A	450	750	410	55	560	75	D 400	75

10

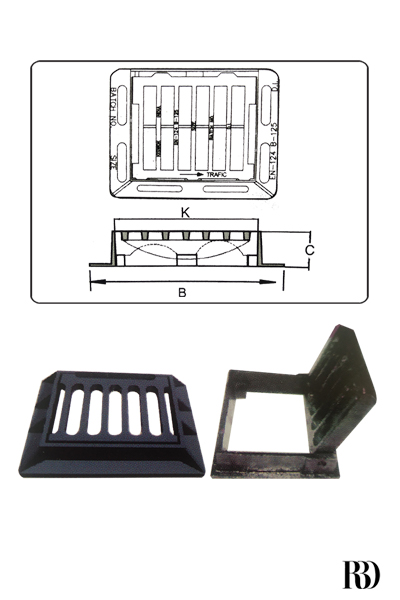

Grating & Frame, Flat or Dished and / or Hinged

Grating and frame available in flat, dished and hinged arrangements as per BS-EN124 or BS-497-76 specification. This range is suitable for drainage, utility chambers, surface water collection points and heavy-duty infrastructure use.

Product Code Range RBO-1125 to RBO-1139

Product Type Grating & Frame

Design Options Flat / Dished / Hinged

Standard BS-EN124 or BS-497-76 Specification

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Grating & Frame Product Size Table

Grating Frame

Product Code	Grade as per BS-EN124	Over Grating K (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-497-76	Appx. Weight Kg ±5%
RBO-1125	B 125	225 X 225	280 X 270	60	B	15
RBO-1126	B 125	225 X 225	280 X 280	60	B	15
RBO-1127	B 125	300 X 300	355 X 340	60	B	21
RBO-1128	B 125	300 X 300	355 X 355	60	B	21
RBO-1129	D 400	400 X 310	550 X 400	100	A	60
RBO-1130	D 400	400 X 350	575 X 425	100	A	60
RBO-1131	D 400	400 X 400	480 X 480	40	A	48
RBO-1132	D 400	500 X 350	655 X 425	100	A	70
RBO-1133	D 400	450 X 450	530 X 530	40	A	50
RBO-1134	D 400	600 X 600	730 X 730	75	A	80
RBO-1135	D 400	600 X 600	750 X 750	100	A	130
RBO-1136	D 400	700 X 375	870 X 500	60	A	60

Additional Grating & Frame Size Table

Flat / Dished / Hinged

Product Code	Grade as per BS-497-76	Over Grating K (mm)	Overall Base B (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1137	A	445 X 400	540 X 545	150	D 400	90
RBO-1138	A	480 X 480	570 X 620	150	D 400	115
RBO-1139	A	600 X 600	750 X 750	150	D 400	130

11

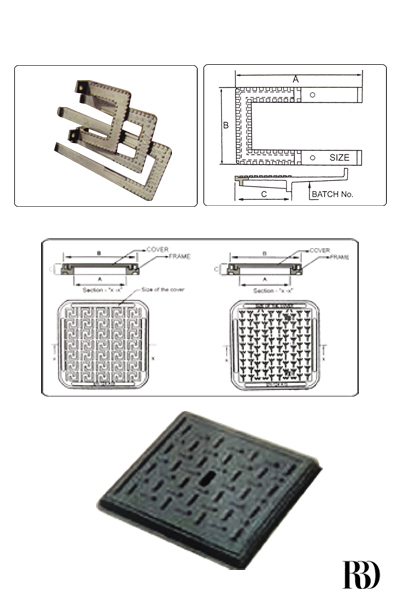

Manhole Step Iron & Cast Iron Light Duty Manhole Cover & Frame

Manhole step iron manufactured as per BS-1247 specification with galvanized or ungalvanized finish and galvanizing as per BS-729. This section also includes cast iron light duty manhole cover and frame as per Romanian specifications, marking as per BS-497-76 Grade C or EN124-A15, suitable for light-duty utility and access applications.

Product Range Manhole Step Iron / Light Duty Manhole Cover & Frame

Standard BS-1247 / BS-729 / BS-497-76 / EN124-A15

Light Duty Product Codes RBO-1143 to RBO-1148

Finish / Availability Galvanized / Un Galvanized / Cast Iron / Ductile Iron

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Cast Iron Light Duty Manhole Cover & Frame Size Table

Light Duty

Product Code	Grade as per BS-497-76	Overall Base B (mm)	Clear Opening A (mm)	Height C (mm)	Grade as per BS-EN124	Appx. Weight Kg ±5%
RBO-1143	C	250 X 250	165 X 165	25	A15	5
RBO-1144	C	300 X 300	190 X 190	25	A15	7
RBO-1145	C	400 X 400	290 X 290	30	A15	13
RBO-1146	C	500 X 500	390 X 390	35	A15	21
RBO-1147	C	600 X 600	490 X 490	40	A15	30
RBO-1148	C	700 X 700	590 X 590	50	A15	40

12

Cast Iron A15 Single Covers Dimensions

Cast iron A15 single covers available in multiple sizes for light-duty access requirements. These covers are suitable for applications where compact size, low weight and reliable closing performance are required.

Product Code Range RBO-1149 to RBO-1154

Product Type Cast Iron A15 Single Covers

Grade A15

Availability Cast Iron / Ductile Iron

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products unless otherwise mentioned.
5. Products available in both cast iron and ductile iron.

Cast Iron A15 Single Covers Size Table

A15 Single Cover

Product Code	Overall Base (mm)	Clear Opening (mm)	Height (mm)	Appx. Weight Kg ±5%
RBO-1149	300 X 300	170 X 170	20	4
RBO-1150	400 X 400	270 X 270	20	6.5
RBO-1151	500 X 500	370 X 370	20	11
RBO-1152	600 X 600	470 X 470	20	16
RBO-1153	700 X 700	570 X 570	20	27
RBO-1154	800 X 800	670 X 670	20	35

13

Cast Iron A15 Double Covers Dimensions

Cast iron A15 double covers are available in different sizes for light-duty access applications. These covers are designed for reliable performance, proper fitting, and long service life in suitable utility and access areas.

Product Code Range RBO-1155 to RBO-1161

Product Type Cast Iron A15 Double Covers

Grade A15

Availability Cast Iron / Ductile Iron

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products are supplied unless otherwise mentioned.
5. Products are available in both cast iron and ductile iron.

Cast Iron A15 Double Covers Size Table

A15 Double Cover

Product Code	Overall Base (mm)	Clear Opening (mm)	Height (mm)	Appx. Weight Kg ±5%
RBO-1155	300 X 300	150 X 150	60	6
RBO-1156	400 X 400	240 X 240	60	11
RBO-1157	500 X 500	335 X 335	60	18
RBO-1158	600 X 600	440 X 440	65	28
RBO-1159	700 X 700	540 X 540	70	45
RBO-1160	800 X 800	640 X 640	80	65
RBO-1161	500 X 300	340 X 140	55	11

14

Ductile Iron Manhole Cover & Frame as per BS:EN 124 B125 Specification for the European Market

Ductile iron manhole cover and frame manufactured as per BS:EN 124 B125 specification for the European market. These covers and frames are suitable for utility, access, and infrastructure applications requiring dependable strength and dimensional accuracy. Steel lifting keys are also available in nickel-plated finish in different shapes and sizes.

Product Code Range RBO-1161 to RBO-1166

Product Type Ductile Iron Manhole Cover & Frame

Standard BS:EN 124 B125

Market European Market

Product Notes

1. Marking specification will be cast as per requirement.
2. Badge shall be provided as per buyer’s requirement.
3. Design may vary at the time of supply due to change of pattern or change of design.
4. Black bitumen coated products are supplied unless otherwise mentioned.
5. Products are available in both cast iron and ductile iron.

Ductile Iron Manhole Cover & Frame Size Table

BS:EN 124 B125

Product Code	Overall Base (mm)	Clear Opening (mm)	Height (mm)	Appx. Weight Kg ±5%
RBO-1161	300 X 300	223 X 223	31	9
RBO-1162	400 X 400	327 X 327	31	14
RBO-1163	500 X 500	395 X 395	50	24.8
RBO-1164	600 X 600	497 X 497	50	33.10
RBO-1165	700 X 700	600 X 600	50	48
RBO-1166	800 X 800	697 X 697	50	59

Steel Lifting Keys

Nickel Plated

Steel Lifting Keys Nickel Plated in Different Shapes and Sizes

1. Steel lifting keys are available in different shapes and sizes.
2. Nickel-plated finish is available as per requirement.
3. Suitable for compatible manhole covers and frames.
